雙功能鑰匙開關

產品信息
產品名稱：	雙功能鑰匙開關

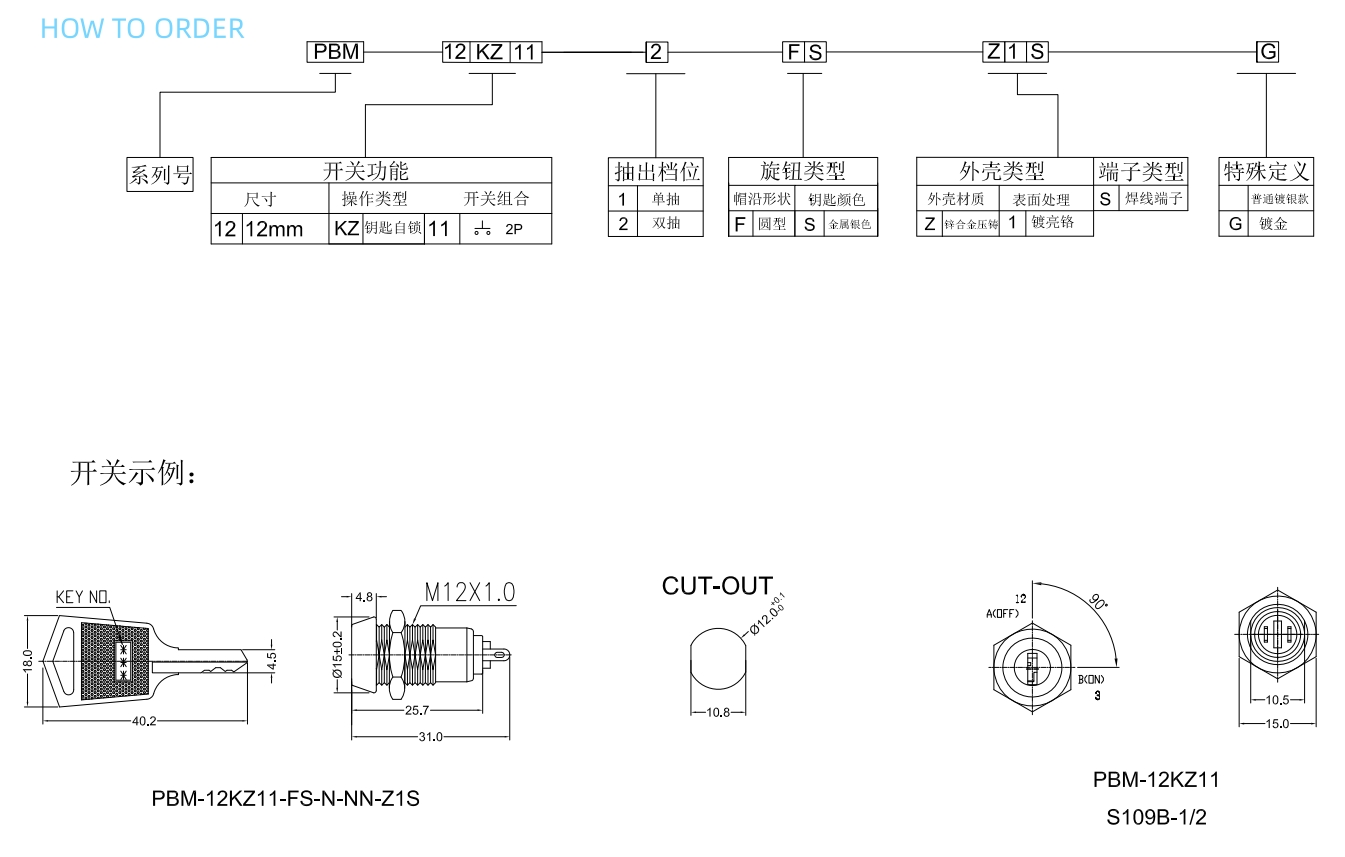

產品型號：	PBM-12K系列
產品簡介：	手感清脆、靈敏度高，兩檔、三檔、單抽、雙抽。

產品詳情

12mm Keylock Switches/PBM-12K Series

SPECIFICATIONS

Contact Rating: 1A 125VAC，0.5A 250VAC
Mechanical Life: 100,000 cycles

Electrical Life: 50,000 cycles

Contact Resistance: 10Milli-Ohms Max.
Insulation Resistance: 500Meg-Ohms Min.(500VDC)

Dielectric Strength: 500 Vrms @sea level.
Operating Temperature: -30°C to +85°C

Description

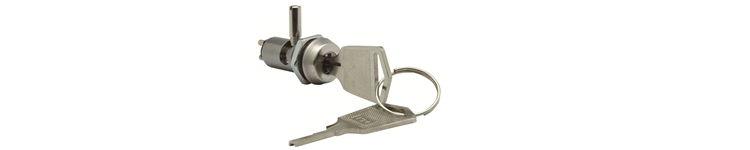

No. S1096
. Zinc alloy die cast housing and cylinder.
. Stainless steel capped bezel.
. Chrome plated standard.
. 4 disc tumbler mechanism.
. Brass keys, nickel plated.
. “L” dimension 13mm standard; other dimensions available upon request.
. Dual-functioned Key Lock Switch.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut or speed clip mounted.

Description

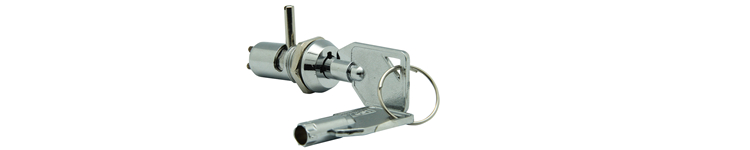

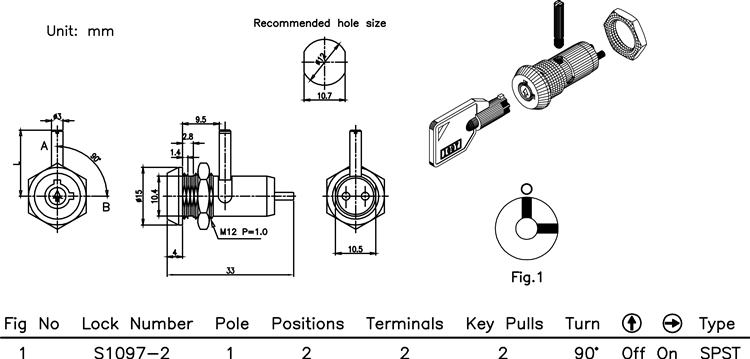

No. S1097
. Zinc alloy die cast housing and cylinder.
. Bright chrome plated standard.
. No pin tumbler mechanism.
. Zinc alloy tubular keys, chrome plated.
. “L” dimension 13mm standard; other dimensions available upon request.
. Dual-functioned Key Lock Switch.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut or speed clip mounted.

Description

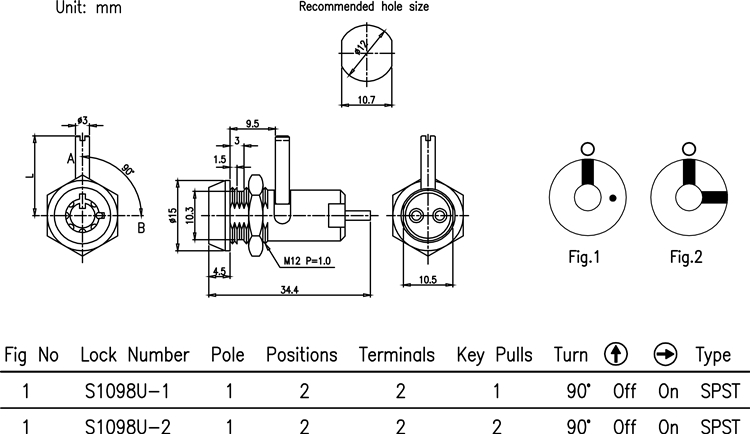

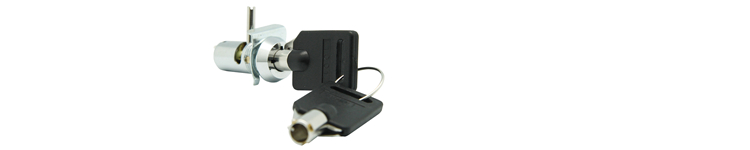

No. S1098
. Zinc alloy die cast housing and cylinder.
. Bright chrome plated standard.
. 4 pin tumbler mechanism.
. Steel made tubular keys, nickel plated, with plastic cover.
. “L” dimension 13mm standard; other dimensions available upon request.
. Dual-functioned Key Lock Switch.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut or speed clip mounted

Description

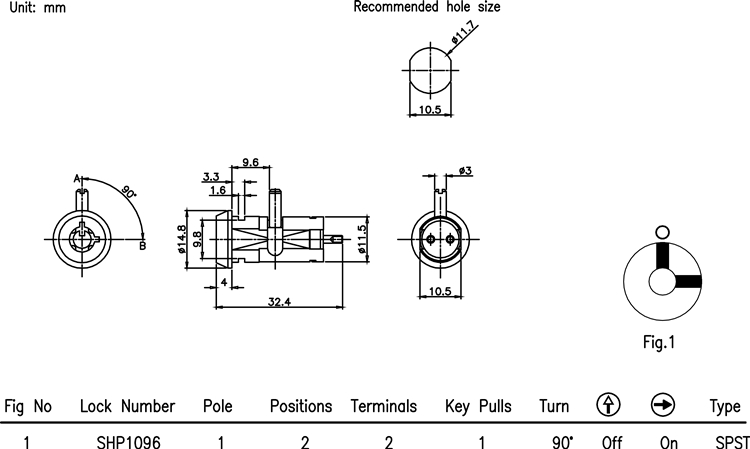

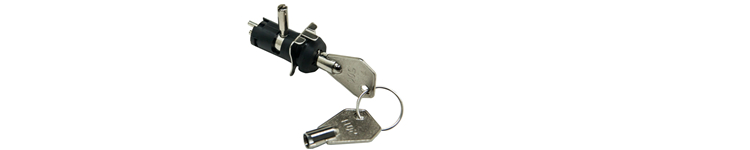

No. SHP1096
. ABS housing and cylinder.
. 4 disc tumbler mechanism.
. Brass keys, nickel plated.
. “L” dimension 13mm standard; other dimensions available upon request.
. Dual-functioned Key Lock Switch.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut or speed clip mounted.
