圓形鑰匙開關

產品信息
產品名稱：	圓形鑰匙開關
產品型號：	PBM-12K系列
產品簡介：	金屬鑰匙開關/電源鎖，手感清脆、靈敏度高、兩檔、三檔、單抽、雙抽。

產品詳情

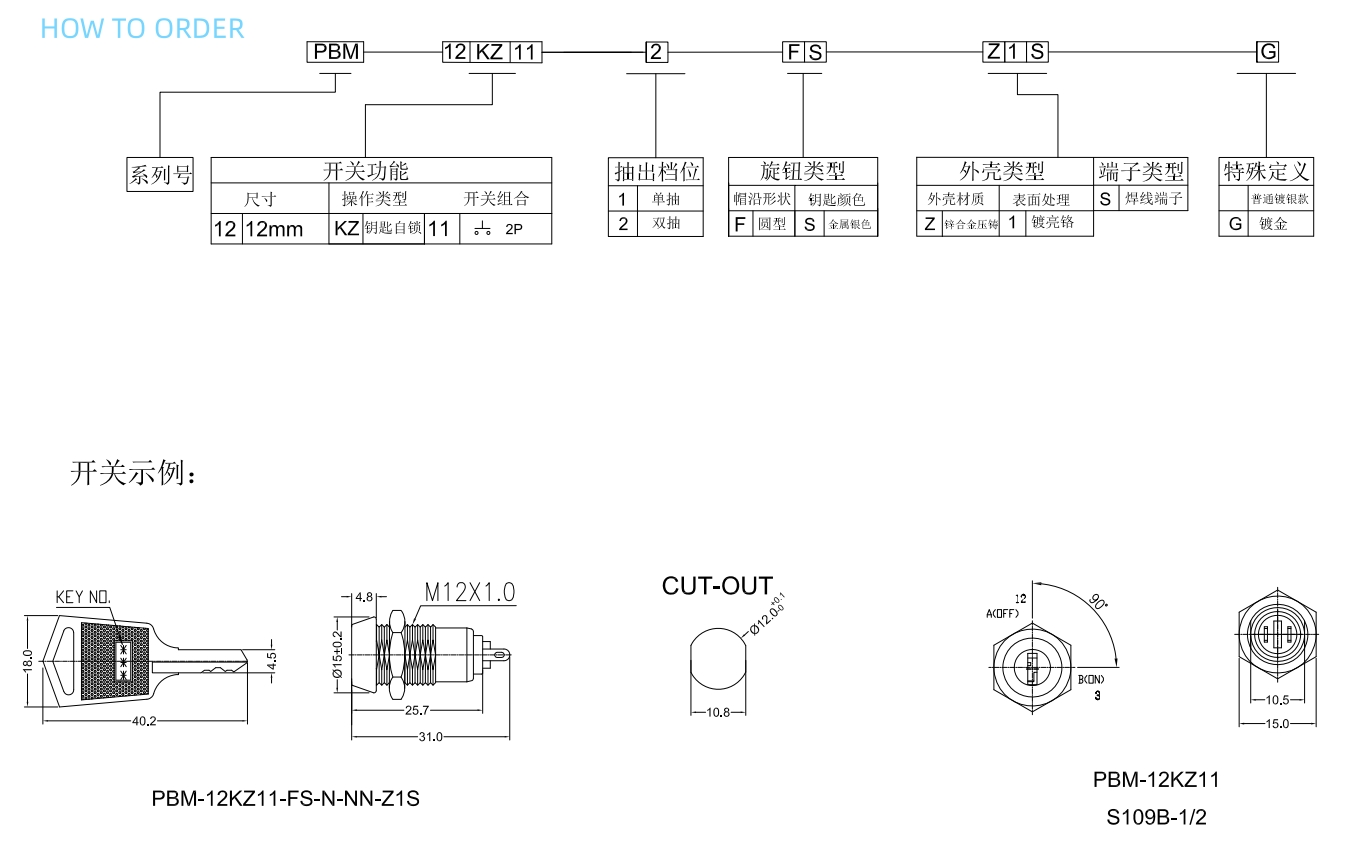

12mm Keylock Switches/PBM-12K Series

SPECIFICATIONS

Contact Rating: 1A 125VAC，0.5A 250VAC
Mechanical Life: 100,000 cycles

Electrical Life: 50,000 cycles

Contact Resistance: 10Milli-Ohms Max.
Insulation Resistance: 500Meg-Ohms Min.(500VDC)

Dielectric Strength: 500 Vrms @sea level.
Operating Temperature: -30°C to +85°C

Description

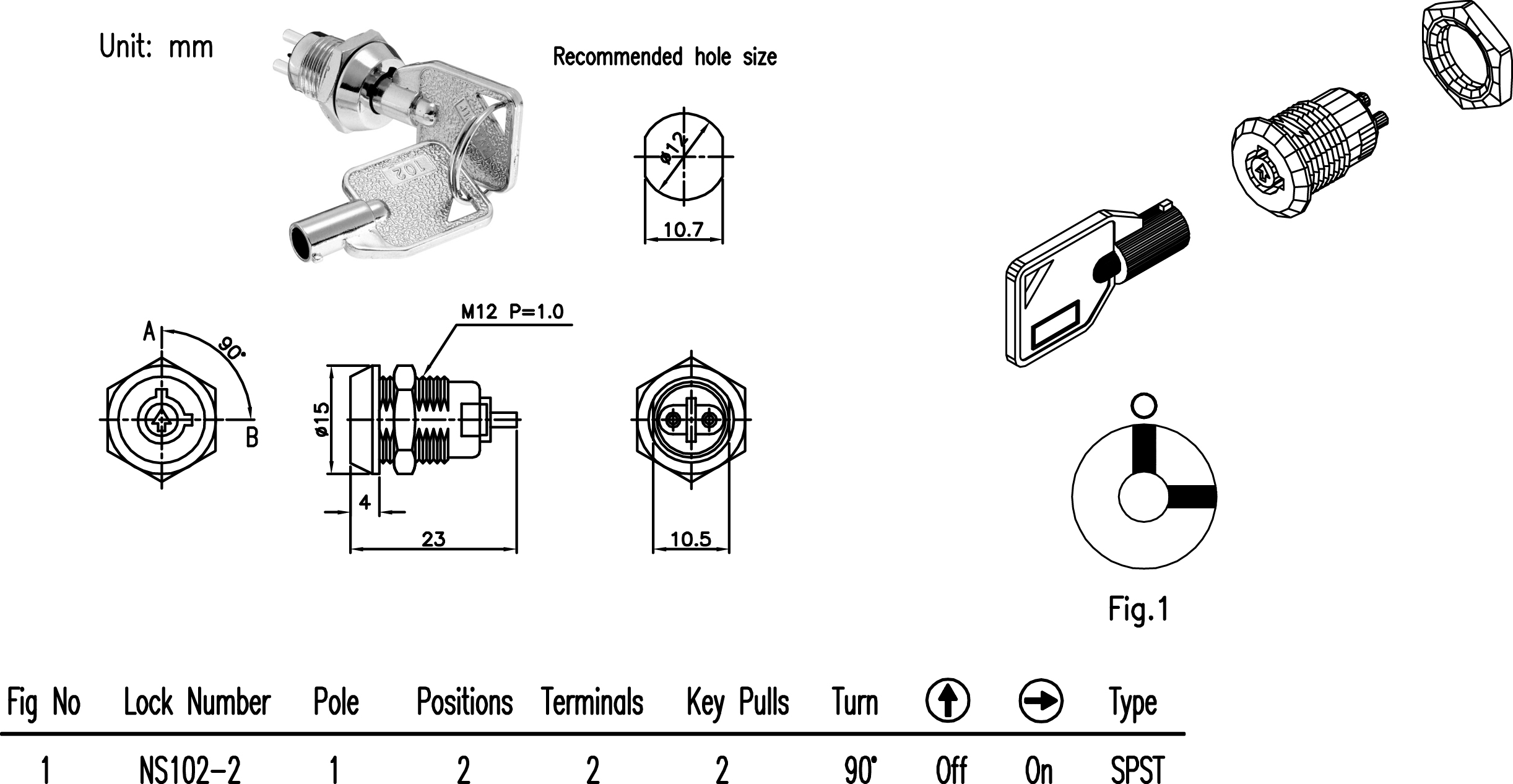

NS102 DESCRIPTION
. Zinc alloy die cast housing and cylinder.
. Chrome plated standard.
. No pin tumbler mechanism.
. Zinc alloy tubular keys, chrome plated.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut or speed clip mounted.

Description
NS106 NS106M DESCRIPTION
. Zinc alloy die cast housing and cylinder.
. Bright Chrome plated standard.
. 4 pin tumbler mechanism.
. Zinc alloy tubular keys, chrome plated, with plastic cover.
. Silver plated contacts and terminals.
. NS106 2 position (off-on) 2 terminals.
. NS106M 2 position (off-on) 2 terminals spring loaded for
momentary contact.
. Hex nut mounted.

Description

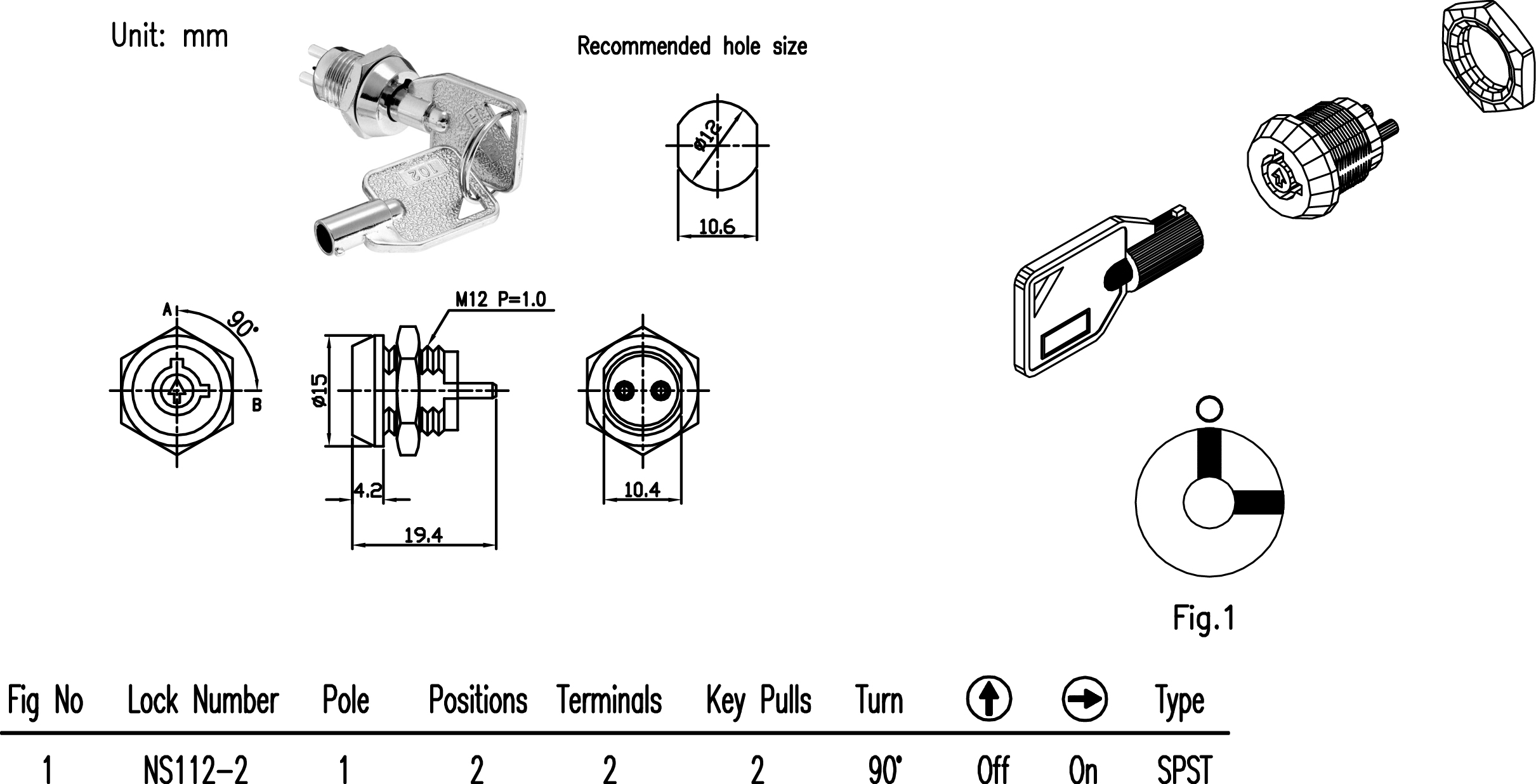

NS112 DESCRIPTION
. Zinc alloy die cast housing and cylinder.
. Chrome plated standard
. No pin tumbler mechanism.
. Zinc alloy tubular keys, chrome plated.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut mounted.

Description

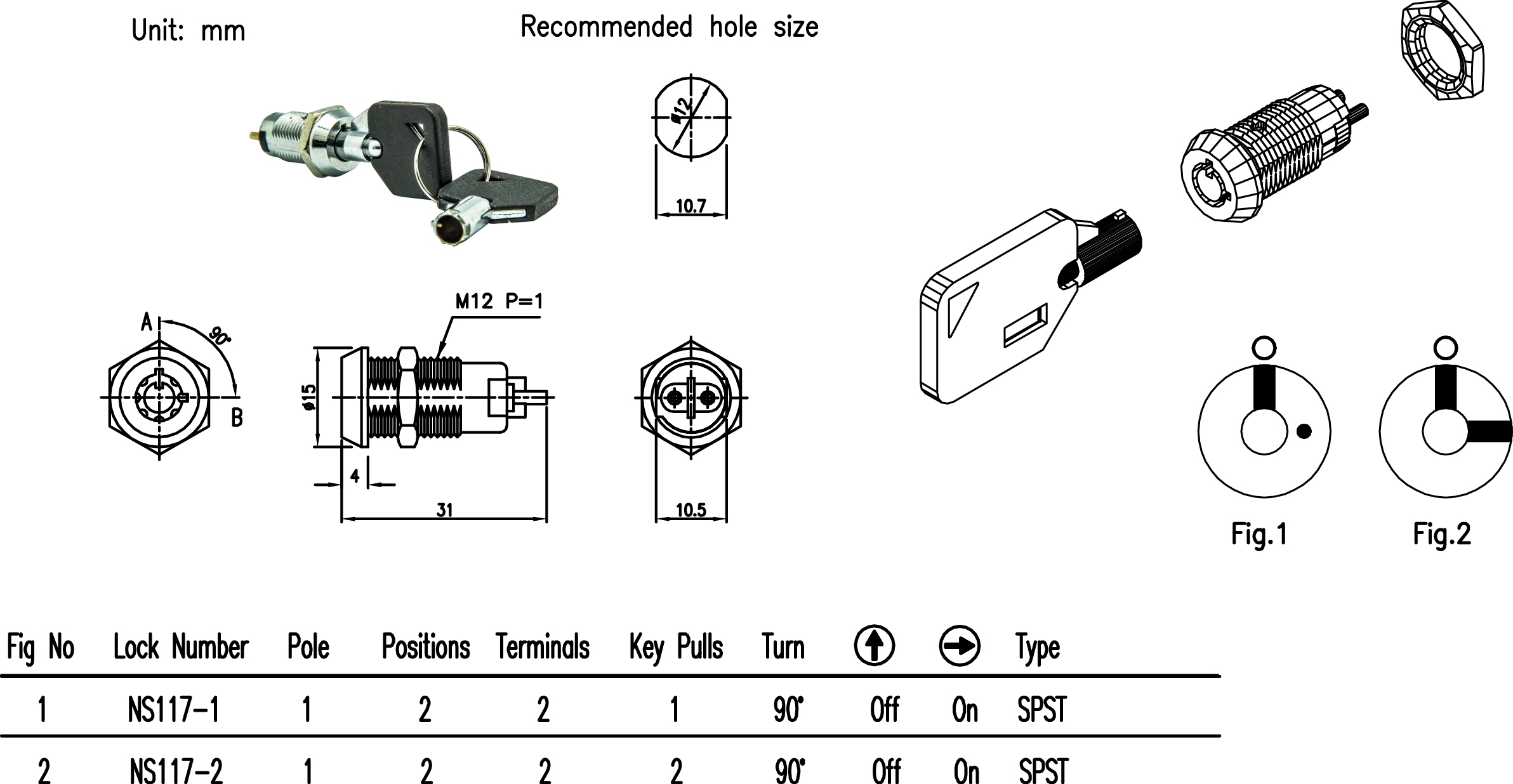

NS117 DESCRIPTION
. Zinc alloy die cast housing and cylinder.
. Bright chrome plated standard.
. 7 pin tumbler mechanism.
. Zinc alloy tubular keys, chrome plated, with plastic cover.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut mounted.
