電源鑰匙開關

產品信息
產品名稱：	電源鑰匙開關
產品型號：	PBM-12K系列
產品簡介：	手感清脆、靈敏度高、兩檔、三檔、單抽、雙抽。

產品詳情

12mm Keylock Switches/PBM-12K Series

SPECIFICATIONS

Contact Rating: 1A 125VAC，0.5A 250VAC
Mechanical Life: 100,000 cycles

Electrical Life: 50,000 cycles

Contact Resistance: 10Milli-Ohms Max.
Insulation Resistance: 500Meg-Ohms Min.(500VDC)

Dielectric Strength: 500 Vrms @sea level.
Operating Temperature: -30°C to +85°C

Description

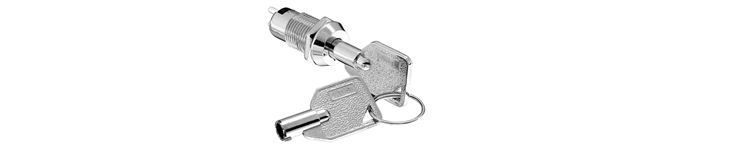

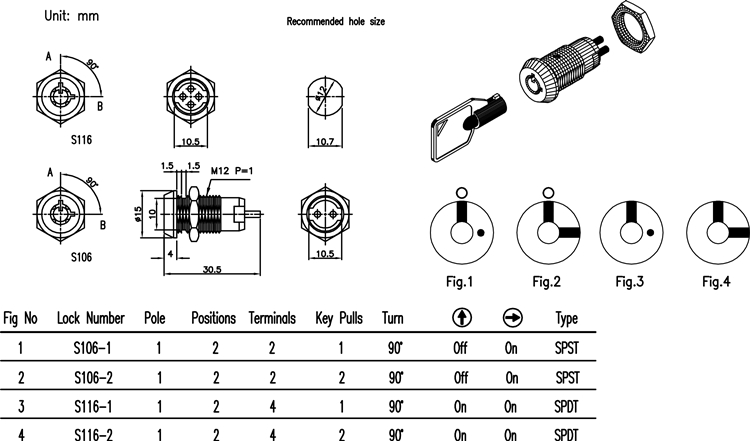

S106 S116 DESCRIPTION
. Zinc alloy die cast housing and cylinder.
. Bright chrome plated standard.
. 4 pin tumbler mechanism.
. Zinc alloy tubular keys, chrome plated.
. Silver plated contacts and terminals.
. S106 2 position (off-on) 2 terminals.
. S116 2 position (on-on) 4 terminals.
. Hex nut mounted.

Description

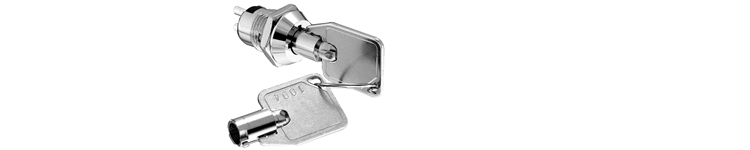

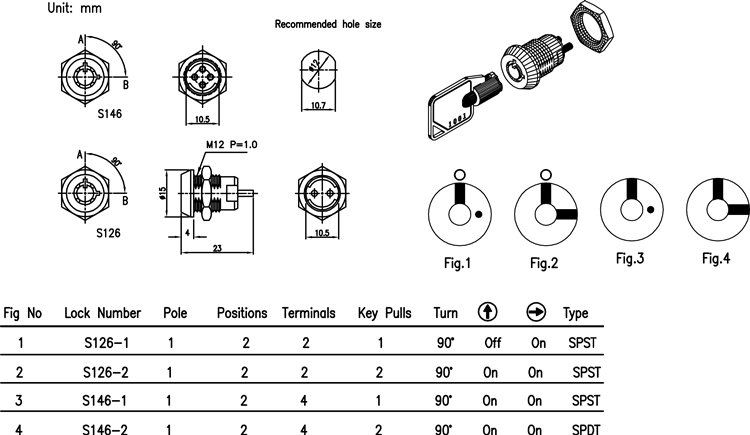

S126 S146 DESCRIPTION
. Zinc alloy die cast housing and cylinder.
. Bright chrome plated standard.
. 4 pin tumbler mechanism.
. Steel made tubular keys, nickel plated.
. Silver plated contacts and terminals.
. S126 2 position (off-on) 2 terminals.
. S146 2 position (on-on) 4 terminals.
. Hex nut mounted.

Description

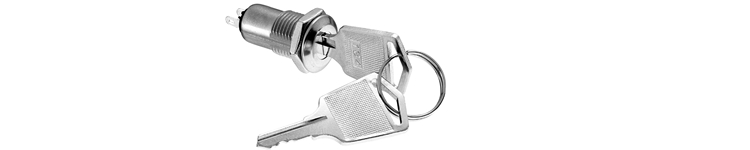

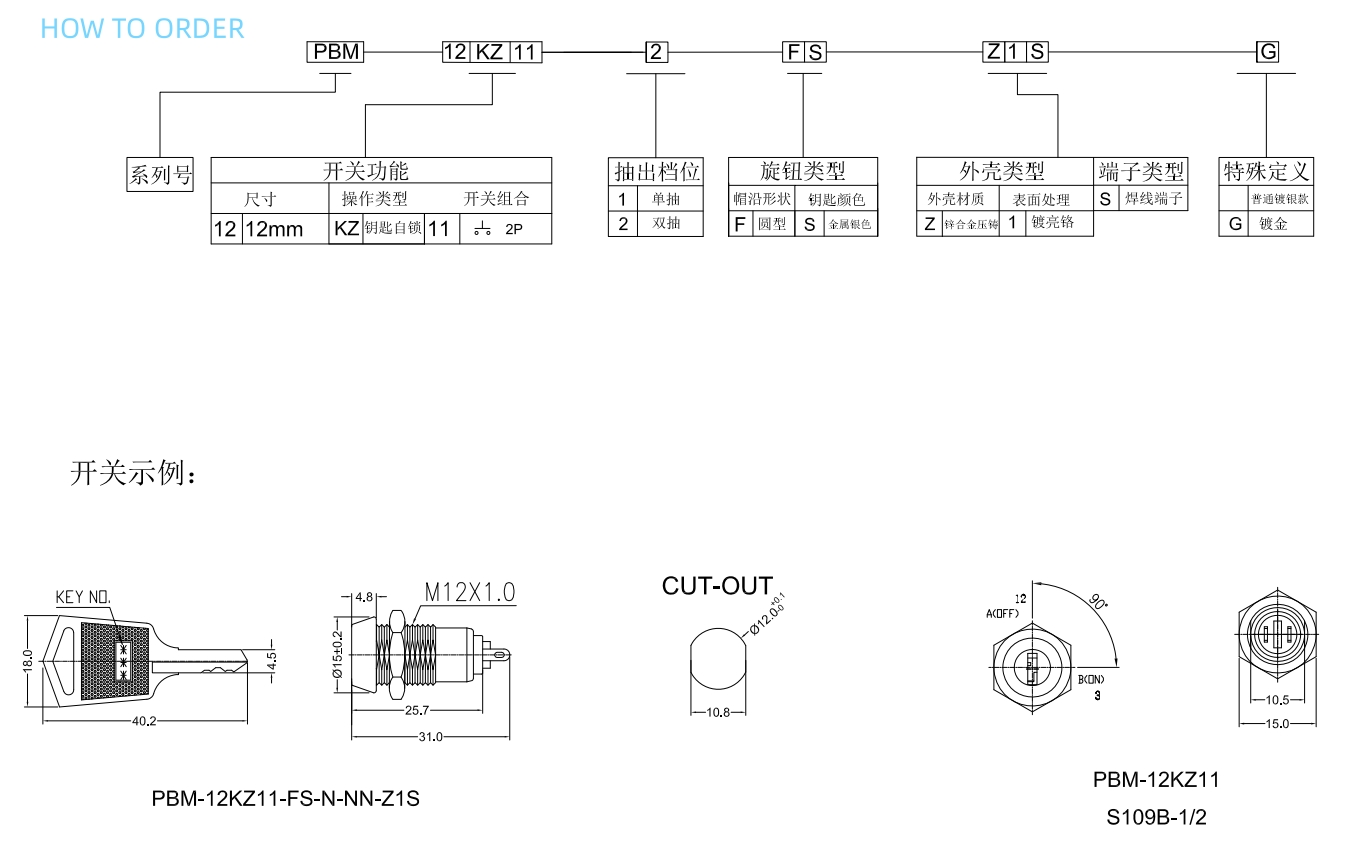

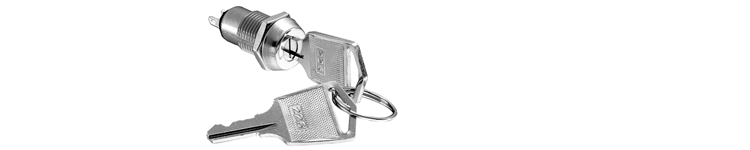

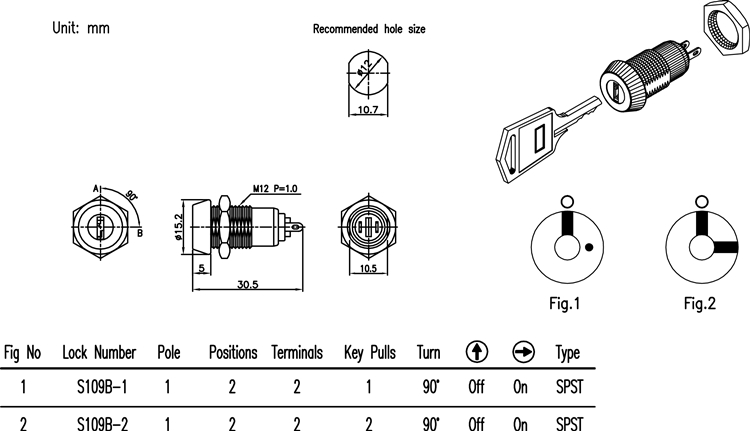

S109B DESCRIPTION
. Zinc alloy die cast housing and plastic cylinder.
. Stainless steel capped bezel.
. Chrome plated standard.
. 4 disc tumbler mechanism.
. Brass keys, nickel plated.
. Silver plated contacts and terminals.
. 2 position (off-on) 2 terminals.
. Hex nut mounted.

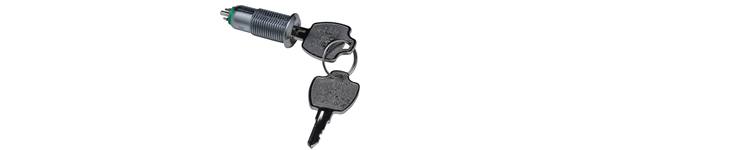

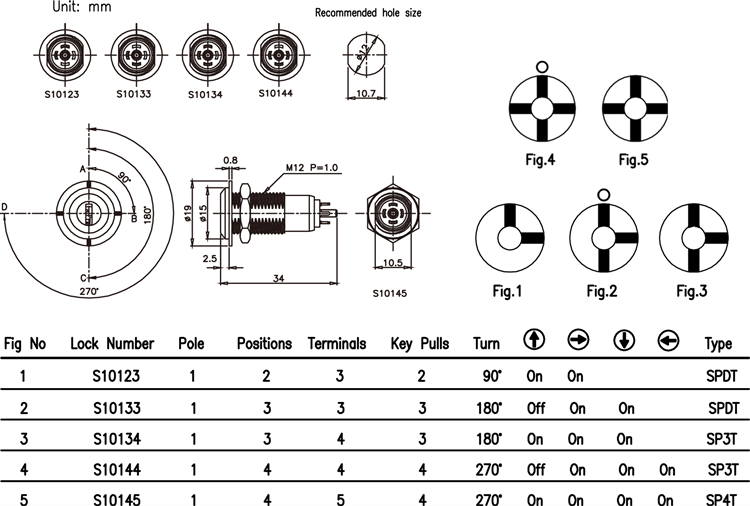

Description
. Zinc alloy die cast housing and cylinder.
. Stainless steel capped bezel.
. Nickel plated standard.
. 4 disc tumbler mechanism.
. Brass keys, nickel plated.
. Various key withdrawals available.
. Silver plated contacts and terminals.
. Hex nut mounted.
. All keyed alike or 20 combinations standard.
. 20 combinations available.
