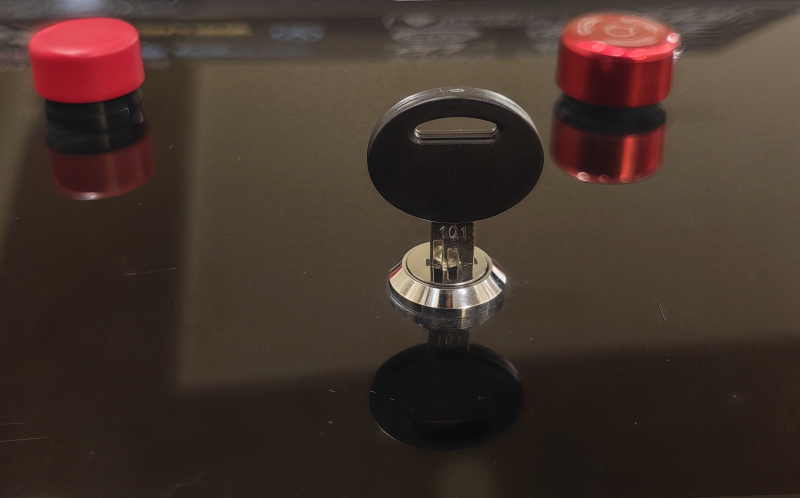

16mm Keylock Switches/S332（PBM-D16KZ11） Series

SAFETY/QUALITY APPROVALS : TUV CE/ROHS

SPECIFICATIONS

Contact Rating: 3A 125VAC，2A 250VAC，4A 28VDC
Mechanical Life: 50,000 cycles

Electrical Life: 6,000 cycles

Contact Resistance: 10Milli-Ohms Max.
Insulation Resistance: 1000Meg-Ohms Min.(1000VAC)

Dielectric Strength: 1000 Vrms @sea level.
Operating Temperature: -30°C to +85°C

Description
. Zinc alloy die cast housing and nylon cylinder.
. Bright chrome plated standard.
. 3 disc tumbler mechanism.
. Brass keys, nickel plated, with plastic cover.
. Silver plated contacts and terminals.

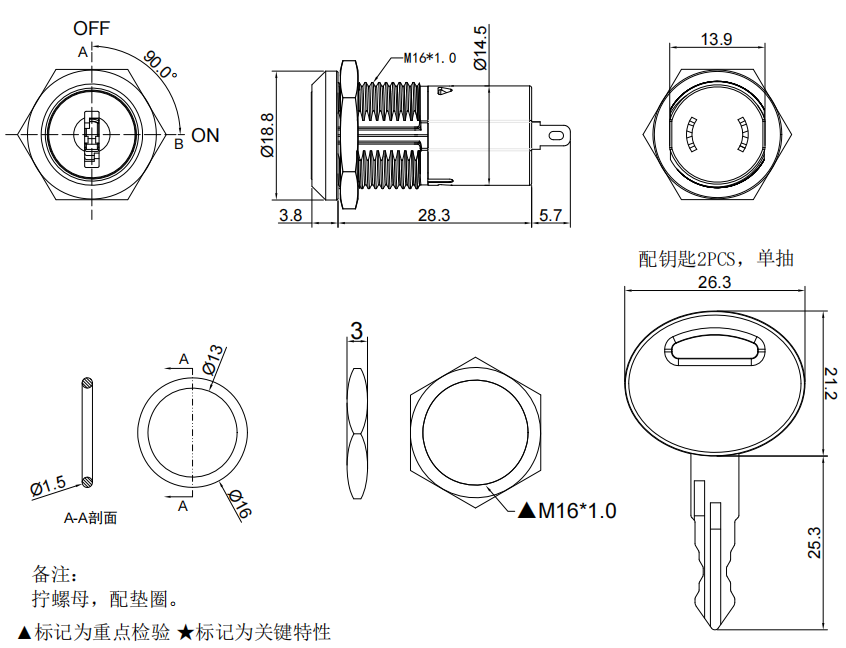

. PBM-D16KZ11 position (off-on) 60 index 2 terminals.
. Hex nut or speed clip mounted.
