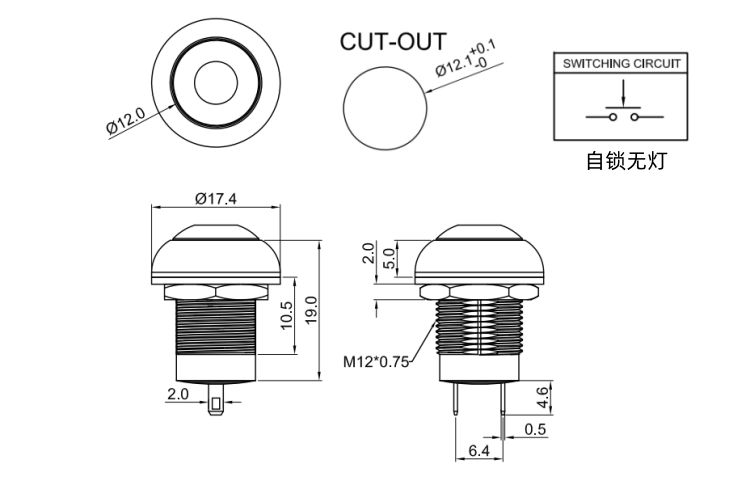

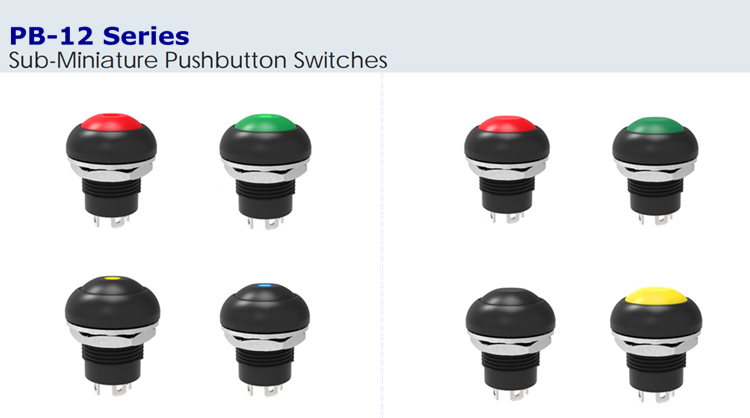

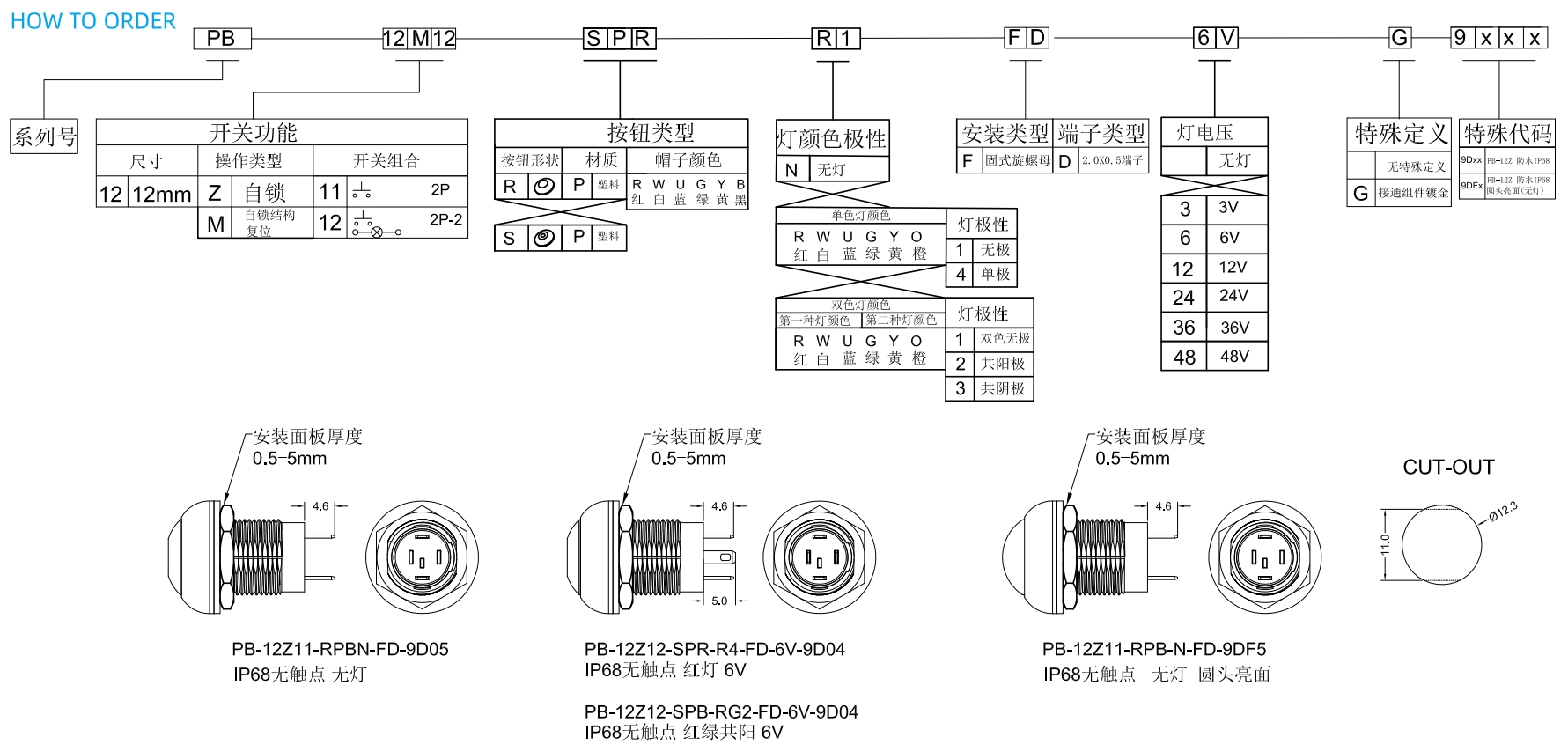

12mm Pushbutton Switches/PB-12Z Series

SAFETY/QUALITY APPROVALS

TUV:IP68/ROHS

SPECIFICATIONS

Panel Thickness: Ø12.30mm

Contact Rating: 0.2A 250VAC  0.5A 12VDC

Mechanical Life:  100,000 cycles

Electrical Life: 50,000 cycles make-and-break cycles.

Torque: 3~8Nm

Travel: About 3.0mm

Operation Pressure: About 3.5N
Contact Resistance: 50 mΩ max.
Insulation Resistance: 100MΩ min.

Dielectric Strength: 500 Vrms @sea level.
Operating Temperature: -20°C to 85°C

Ingress Protection: TUV IP68

MATERIALS

Bushing : PA66

Base : PBT/PA66

Actuator : PC/PA66

Inner Assembly: POM / PA66.

Spring : Spring steel.

Sealing: Sillicone.

O-Ring : Sillicone

Terminal : Brass,with silver or gold plated.

Hex Nut : Nickel plated brass

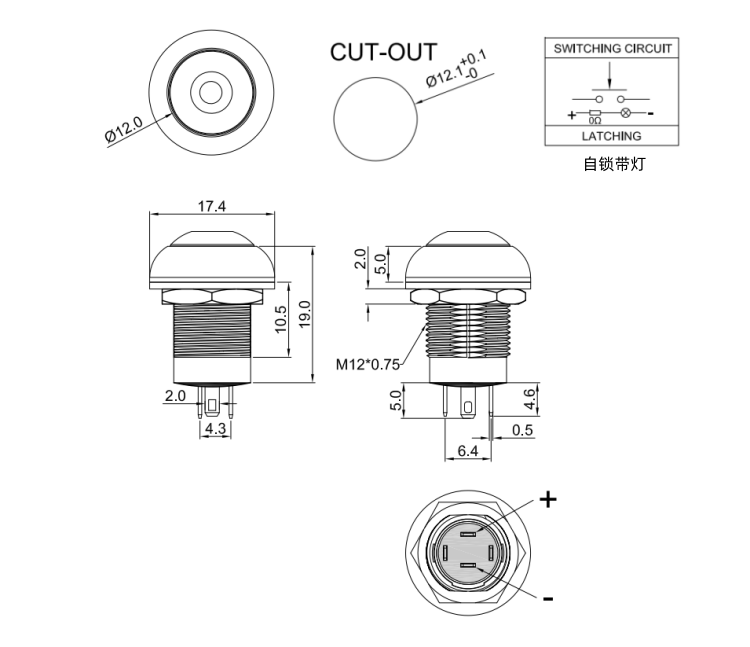

Led: 1.8V/3V/6V/12V/24V/36V/48V/110V/220V

ILLUMINATION BASE RATlNG：

Red， Yellow and Orange：20mA 1.8V;

Blue, Green and White：20mA 2.8V

Beads Color：R/U/G/Y/0/W
