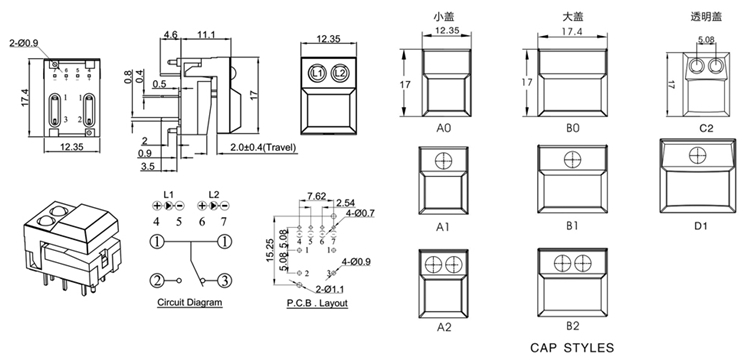

PB86 Tact Switches/  PB86 Series

SAFETY/QUALITY APPROVALS

ROHS

SPECIFICATIONS

Contact Rating: 12mA 24VDC
Mechanical Life: 200,000 cycles

Electrical Life: 50,000 make-and-break cycles at full load

Torque: 5~14Nm

Travel: About 2.0mm

Operation Pressure: 170±50gf
Contact Resistance: 100 mΩ max.
Insulation Resistance: DC500V 100MΩ min.

Dielectric Strength: 500 Vrms @sea level.
Operating Temperature: -25°C to 70°C

Soldear Specifications:256°C for 5 Seconds

MATERIALS

BUSHING : PBT

BASE : PBT

ACTUATOR : ABS

INNER ASSEMBLY : POM

SPRING : Spring steel.

TERMINAL : Brass,with silver or gold plated.

Led: 1.8V/3V/6V/12V/24V/36V/48V/110V/220V

ILLUMINATION BASE RATlNG：

Red， Yellow and Orange：20mA 1.8V;

Blue, Green and White：20mA 2.8V

Beads Color：R/U/G/Y/0/W
