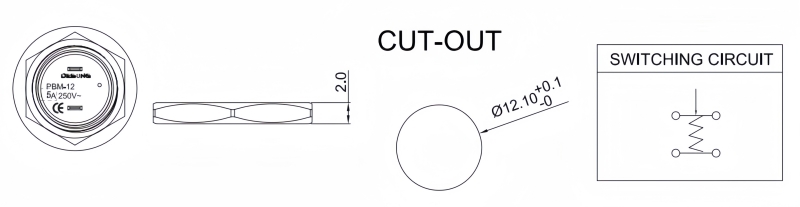

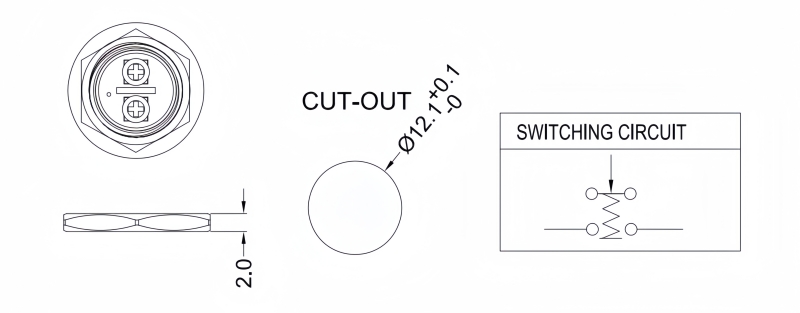

Panel Thickness: Ø12.20mm

Function: Momentary

Contact Rating: lth 10A/125VAC  resistive load 5A/250VAC
Mechanical Life: 200,000 cycles

Electrical Life: 50,000 make-and-break cycles at full load

Torque: 5~14Nm

Travel: About 2.0mm

Operation Pressure: 400±100gf
Contact Resistance: 50 mΩ max.
Insulation Resistance: 100MΩ min.

Dielectric Strength: 1,500 Vrms @sea level.
Operating Temperature: -20°C to 85°C

MATERIALS

BUSHING : Stainless Steel / Nickel plated brass / Aluminum alloy

BASE : PBT, PC

ACTUATOR : PC ; Stainless Steel / Nickel plated brass / Aluminum alloy

INNER ASSEMBLY : POM / PA66.

SPRING : Spring steel.

SEALING : Sillicone.

O-Ring : Sillicone

TERMINAL : Brass,with silver or gold plated.

HEX NUT : Nickel plated brass
